THB-B05.65-40BI VDI40-5480-ER32 徑向動力刀座 Int.

產品介紹

prod2014042100025
prod20140421000252020-06-18_10_24_48
◎ VDI40-5480-ER32 Radial Driven Tool Holder_Int. 65mm ◎ Tool Holder is produced in accordance with DIN 69880. ◎ Driven Coupling is according to DIN 5480. ◎ ER Collet is according to DIN6499. ◎ For left hand and right hand turret. ◎ Further option : 6000 RPM ...了解更多

THB-B05.65-40BI VDI40-5480-ER32 徑向動力刀座 Int.

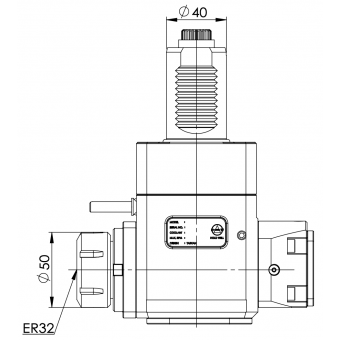

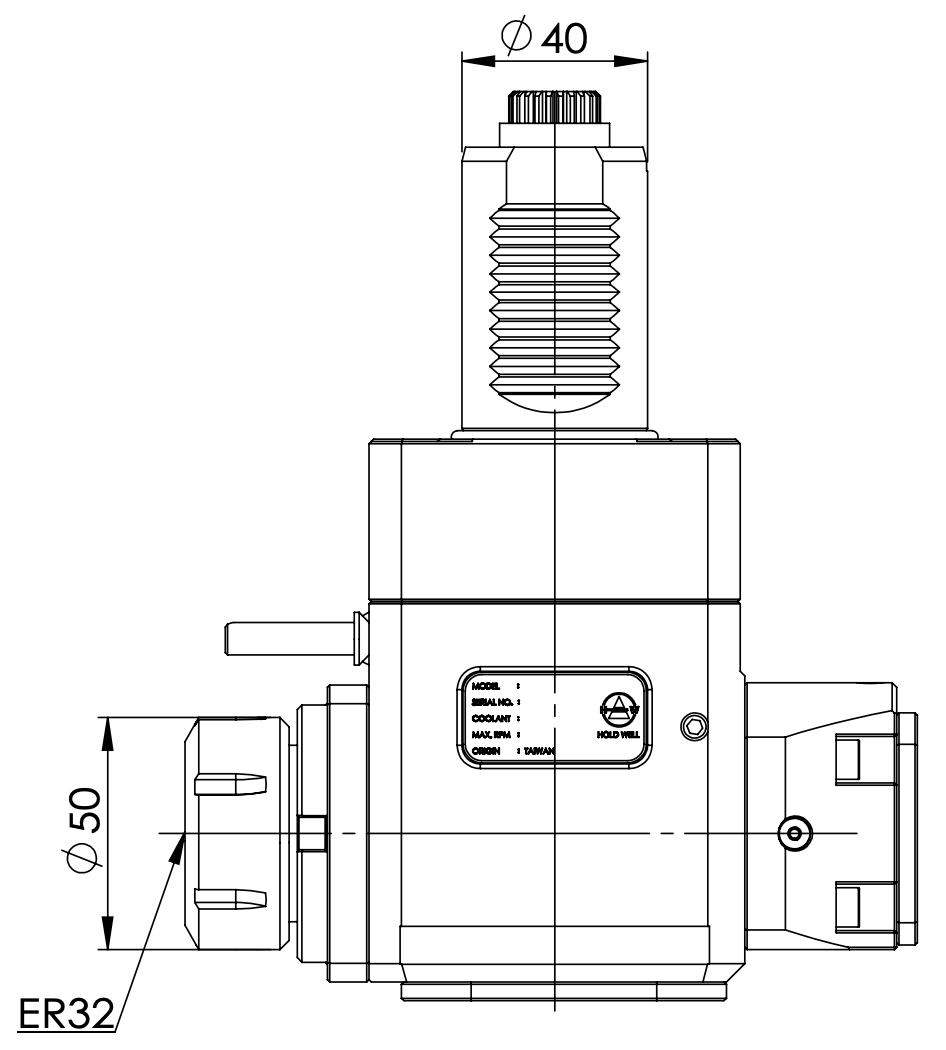

下載 DWG STP PDF
  • 描述

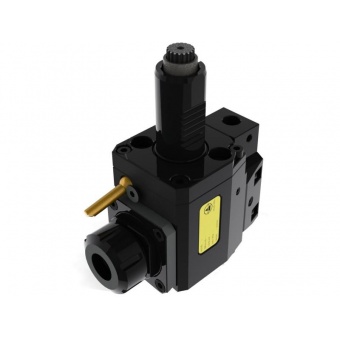

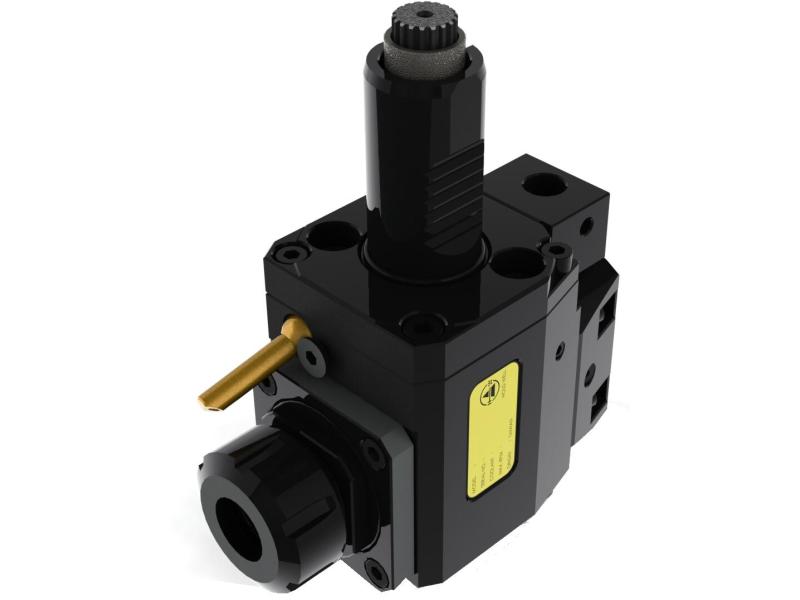

◎ VDI40-5480-ER32 Radial Driven Tool Holder_Int. 65mm

◎ Tool Holder is produced in accordance with DIN 69880.

◎ Driven Coupling is according to DIN 5480.

◎ ER Collet is according to DIN6499.

◎ For left hand and right hand turret.

◎ Further option : 6000 RPM
