THB-B04.55-30DI VDI30-MT-ER25 徑向動力刀座 Int

產(chǎn)品介紹

m_prod2014042500093

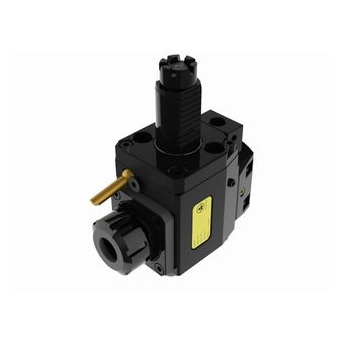

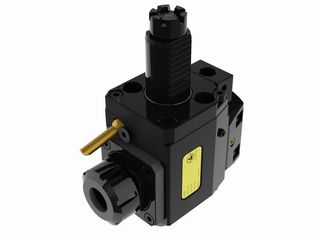

◎ VDI30-MT-ER25 Radial Driven Tool Holder_Int.◎ Tool Holder is produced in accordance with DIN 69880.◎ Driven Coupling is according to SPUR MT TOEM.◎ ER Collet is according to DIN6499.◎ For left hand and right hand turret.◎ Further option : 6000 RPM

THB-B04.55-30DI VDI30-MT-ER25 徑向動力刀座 Int



  • 描述
  • IM_EXTRA_TAB_ADD1
  • 規(guī)格

◎ VDI30-MT-ER25 Radial Driven Tool Holder_Int.
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ Further option : 6000 RPM

◎ Gear Ratio：1：1
◎ R.P.M.：Max. 4,000 RPM
◎ Internal Coolant：30 bar

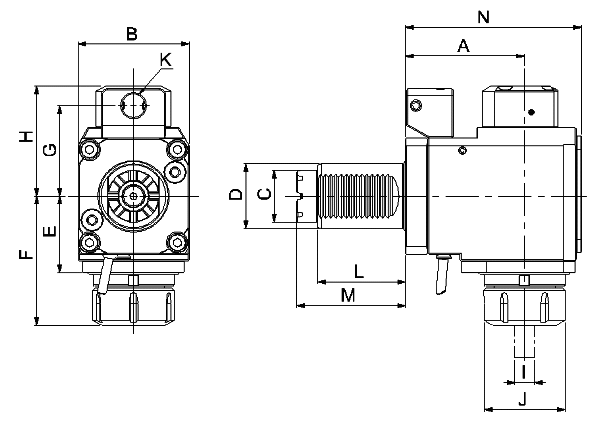

Model No. A B C D E F G H I J K L M N N.W. (KG)
THB-B04.55-30DI 55 64 24 30 39.5 66 4./63 68 ER25(2~16) 42 12 45 59 86.5 3.2

Unit:mm
