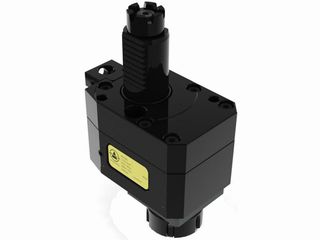

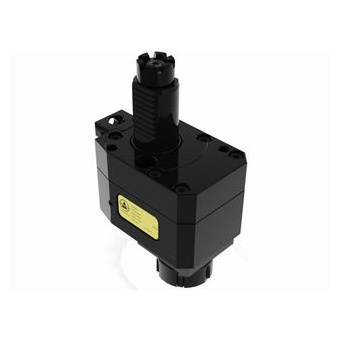

THB-C05.50-40DI VDI40-MT-ER32 軸向偏心動力刀座(中心出水)

產品介紹

m_prod2014042500083
◎ VDI40-MT-ER32 Axial Offset Driven Tool Holder_Int.◎ Tool Holder is produced in accordance with DIN 69880.◎ Driven Coupling is according to SPUR MT TOEM.◎ ER Collet is according to DIN6499.◎ For left hand and right hand turret.◎ Further option : 6000 RPM ...了解更多

THB-C05.50-40DI VDI40-MT-ER32 軸向偏心動力刀座(中心出水)



下載 DWG STP PDF
  • 描述
  • IM_EXTRA_TAB_ADD1
  • 規格

◎ VDI40-MT-ER32 Axial Offset Driven Tool Holder_Int.
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ Further option : 6000 RPM

◎ Gear Ratio：1：1
◎ R.P.M.：Max. 5,000 RPM
◎ Internal Coolant：30 bar

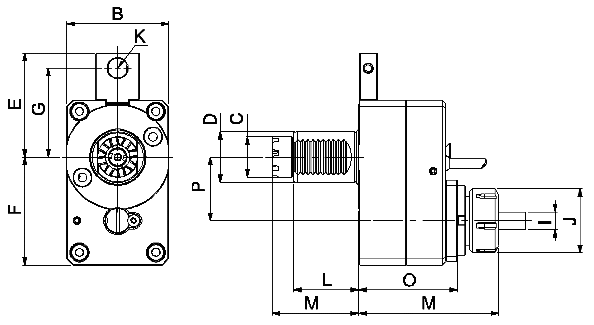

Model No. B D E F G I J K L M N O P N.W. (KG)
THB-C05.50-40DI 80 40 75/82 85 63/70 ER32(3~20) 50 16 51 72 110 77.5 50 6.3

Unit:mm
