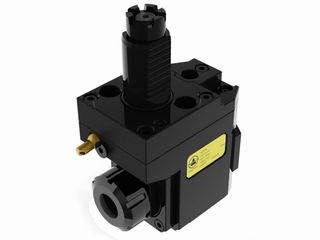

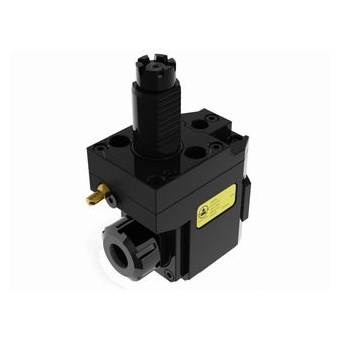

THB-D07.102-60D VDI60-MT-ER50 徑向內縮動力刀座

產品介紹

m_prod2014042500049
◎ VDI60-MT-ER50 Radial Offset Driven Tool Holder◎ Tool Holder is produced in accordance with DIN 69880.◎ Driven Coupling is according to SPUR MT TOEM.◎ ER Collet is according to DIN6499.◎ For left hand and right hand turret.◎ Further option : 6000 RPM

THB-D07.102-60D VDI60-MT-ER50 徑向內縮動力刀座



  • 描述
  • IM_EXTRA_TAB_ADD1
  • 規格

◎ VDI60-MT-ER50 Radial Offset Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ Further option : 6000 RPM

◎ Gear Ratio：1：1
◎ R.P.M.：Max. 4,000 RPM

Model No. A B D E F G H I J K L M N N.W. (KG)
THB-D07.102-60D 102 104 60 54 75 89 116 ER50(12~34) 78 16 78 100 154 14

Unit:mm
