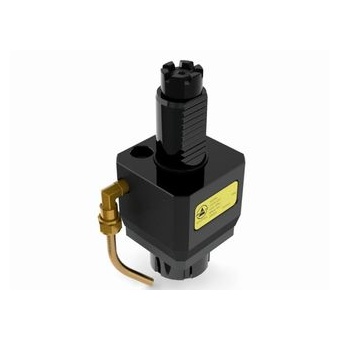

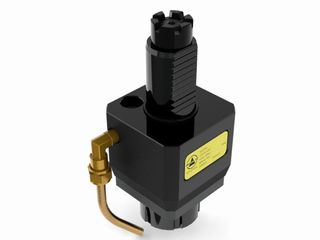

THB-A07-80D VDI80-MT-ER50 軸向動力刀座

產品介紹

m_prod2014040900001
◎ VDI80-MT-ER50 Axial Driven Tool Holder◎ Tool Holder is produced in accordance with DIN 69880.◎ Driven Coupling is according to SPUR MT TOEM.◎ ER Collet is according to DIN6499.◎ For left hand and right hand turret.

THB-A07-80D VDI80-MT-ER50 軸向動力刀座



  • 描述
  • IM_EXTRA_TAB_ADD1
  • 規格

◎ VDI80-MT-ER50 Axial Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.

◎ R.P.M.：Max. 6,000 RPM

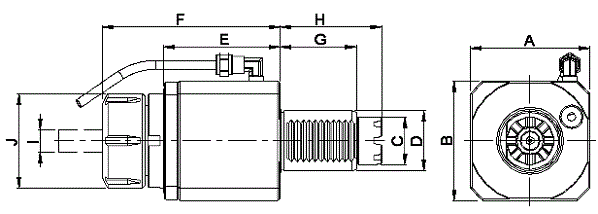

Model No. A B C D E F G H I J N.W.(KG)
THB-A07-80D 158 158 57 80 130 183.5 111 130 ER50(12~34) 78 23

Unit:mm
